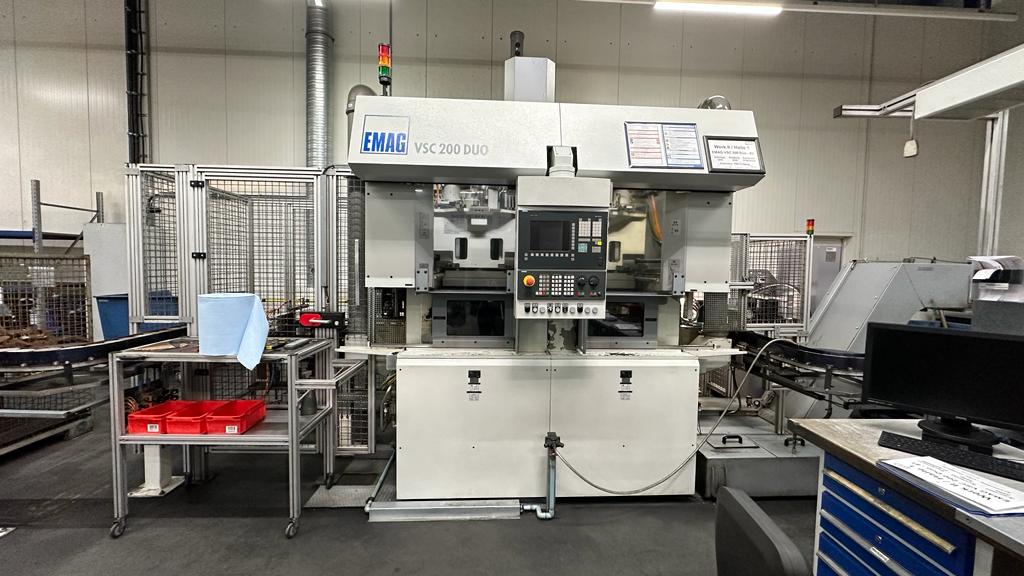

Vertical two-spindle turning center
.jpeg)
Offer details
Manufacturer
EMAG
Type
VCS 200 DUO
Year
2012
Delivery time
immediately
Freight basis
ex stock
Type of control
CNC
Control
Siemens 840D
Storage location
Halberstadt
Country of origin
Deutschland
X-Travel
725 mm
Z-Travel
200 mm
chuck diameter
160/200 mm
Swing Diameter
725 mm
main spindle
2 pc
Spindle flange (DIN 55026)
5 Size
spindle bearing
80 Ø - in front
Maximum speed
6500 min-1
Spindle distance
955 mm
Main Drive
2 pc
AC asynchronous motor 44/100% ED
24/16 kW
maximum performance
24 kW
Full power from spindle speed
1500 min-1
Moment 44/100% ED
153/102 Nm
Rapid traverse speed X
60 m / min
rapid traverse speed Z
30 m / min
Feed force in X and Z
5,5/11 kN
Ball screw - Ø in X/Z
50/40 mm
Writing revolver cylindrical shank mount DIN 69880
2x12 pc
Shank - Ø
40 mm
Operating voltage
400 V
Control voltage direct current
24 V
Control voltage AC
230 V
frequency
50 Hz
connected load
45 kW
supply fuse
100 A
Machine length
3500 mm
Machine width
2300 mm
Machine Height
2500 mm
Machine weight
12000 kg
Additional information
Documentation
Hinged chip conveyor
Coolant cleaning with 2 pumps
Cooling system
2x jaw chuck
Hinged chip conveyor
Coolant cleaning with 2 pumps
Cooling system
2x jaw chuck
