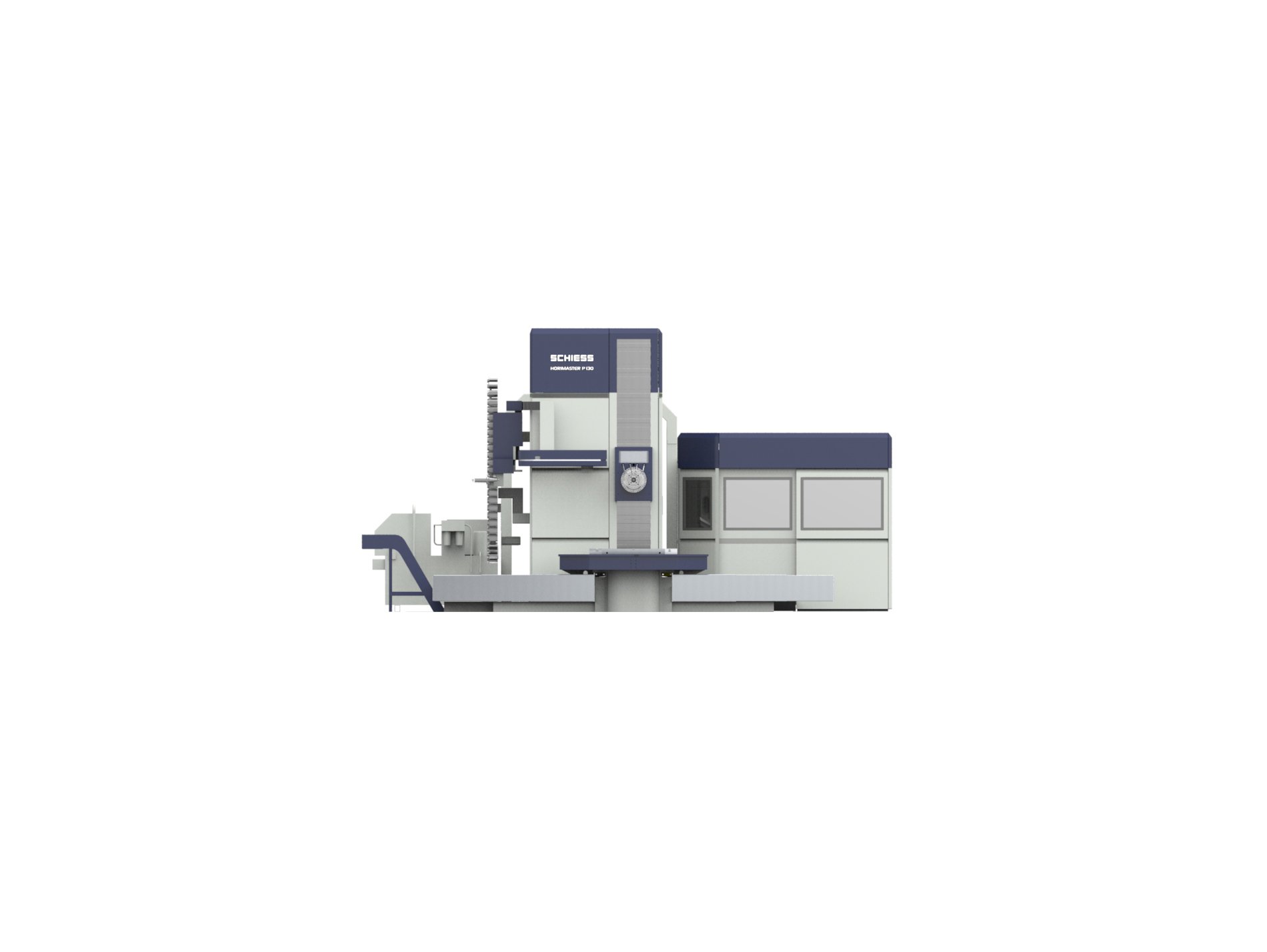

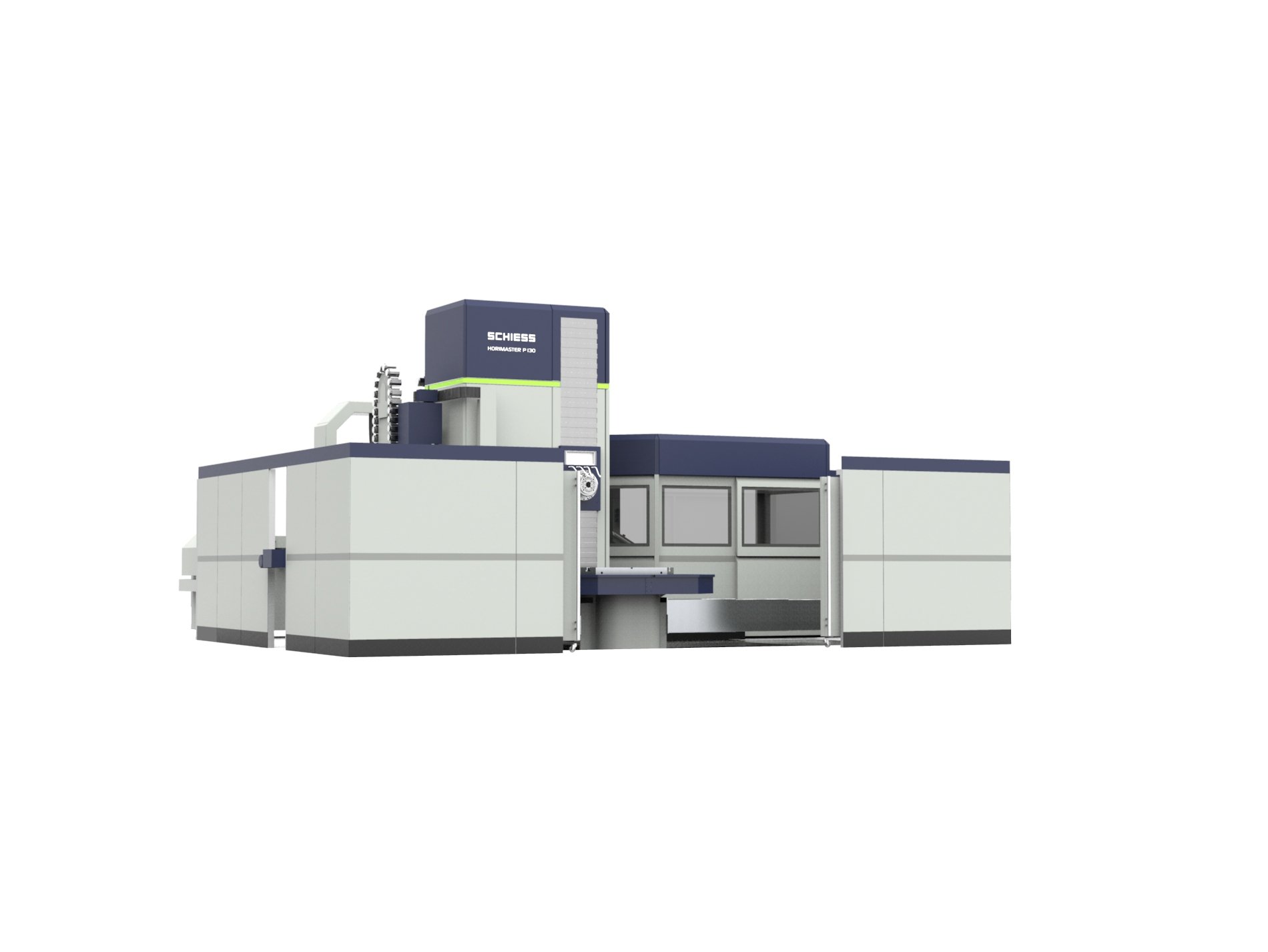

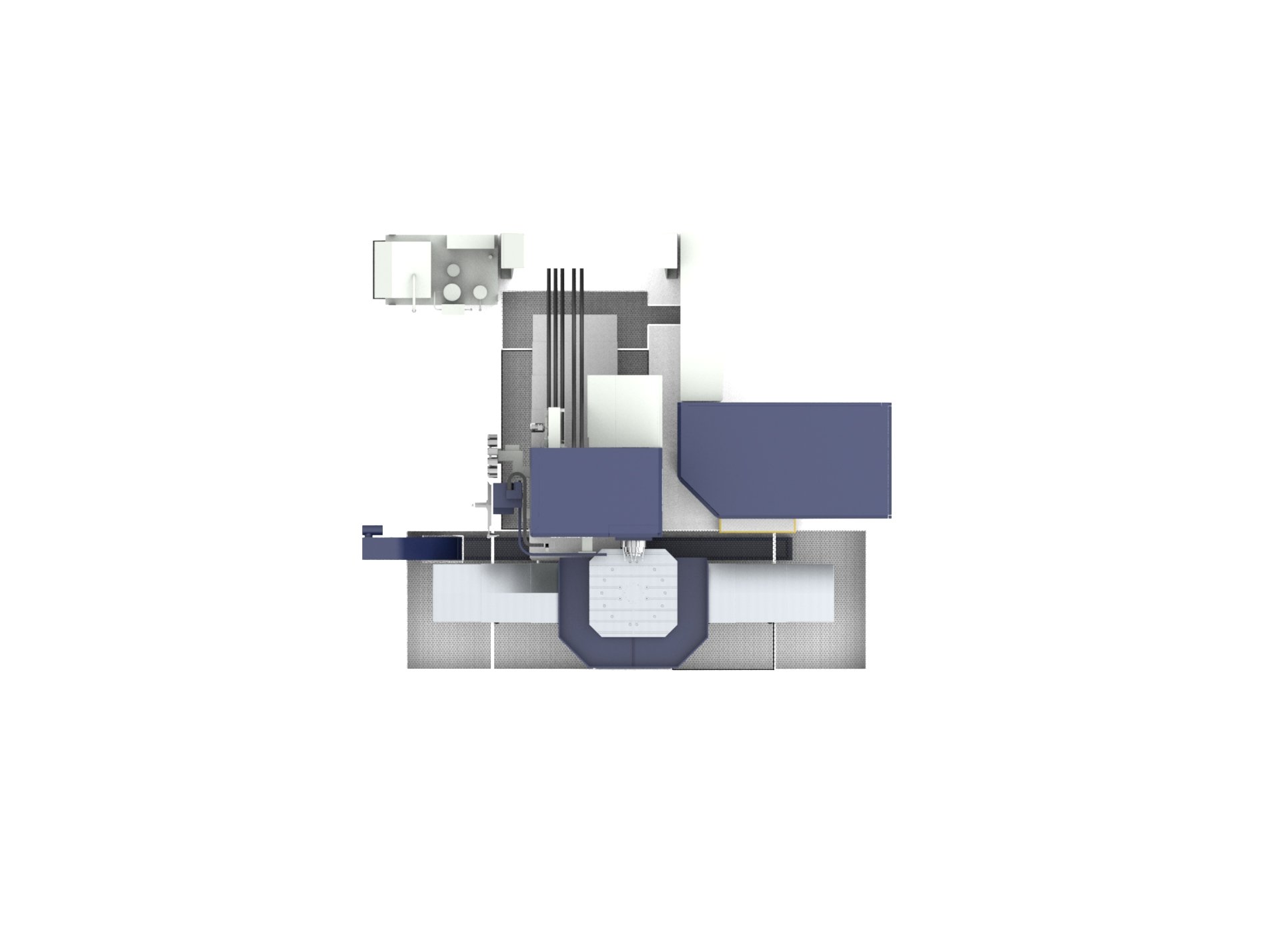

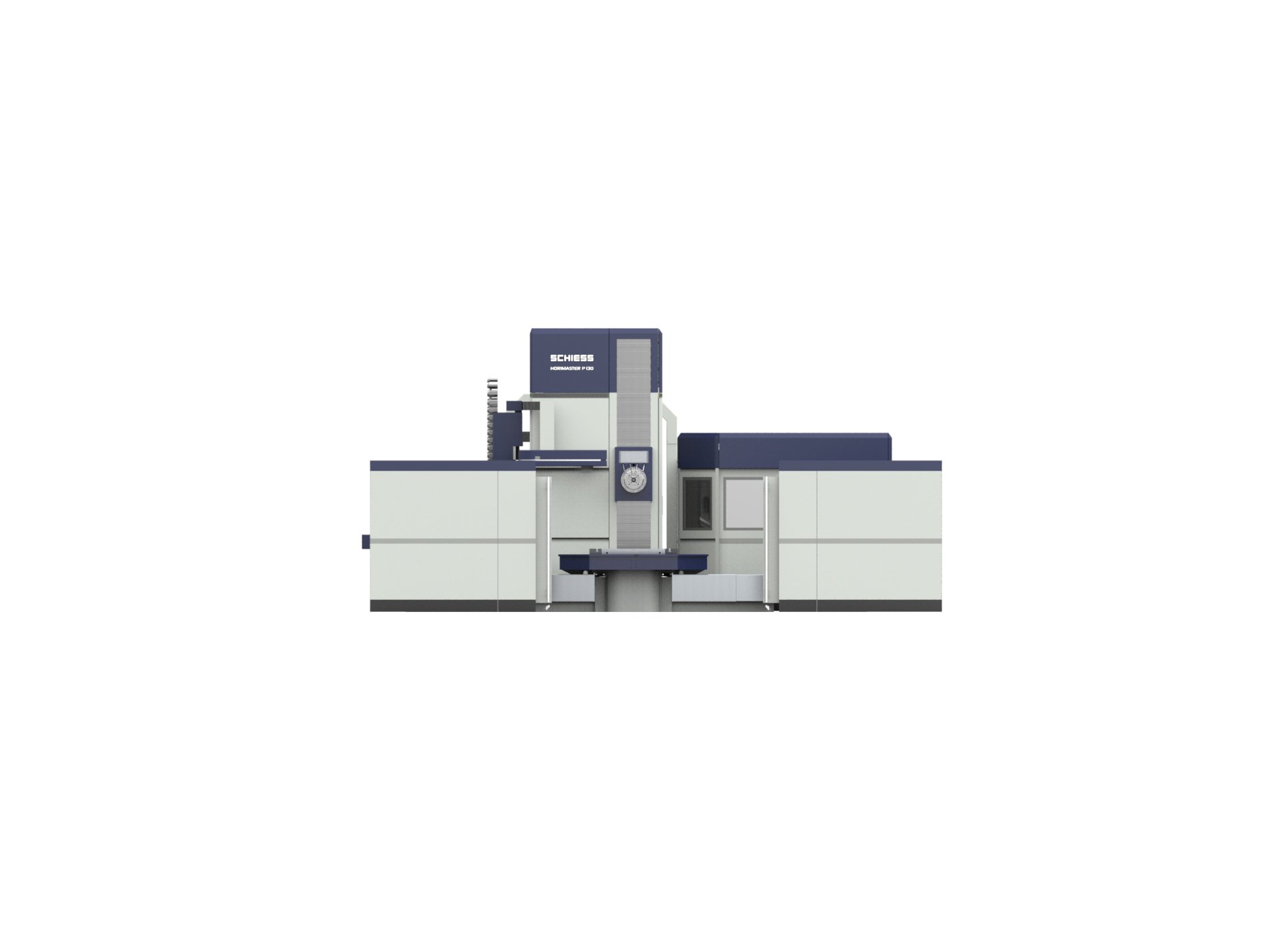

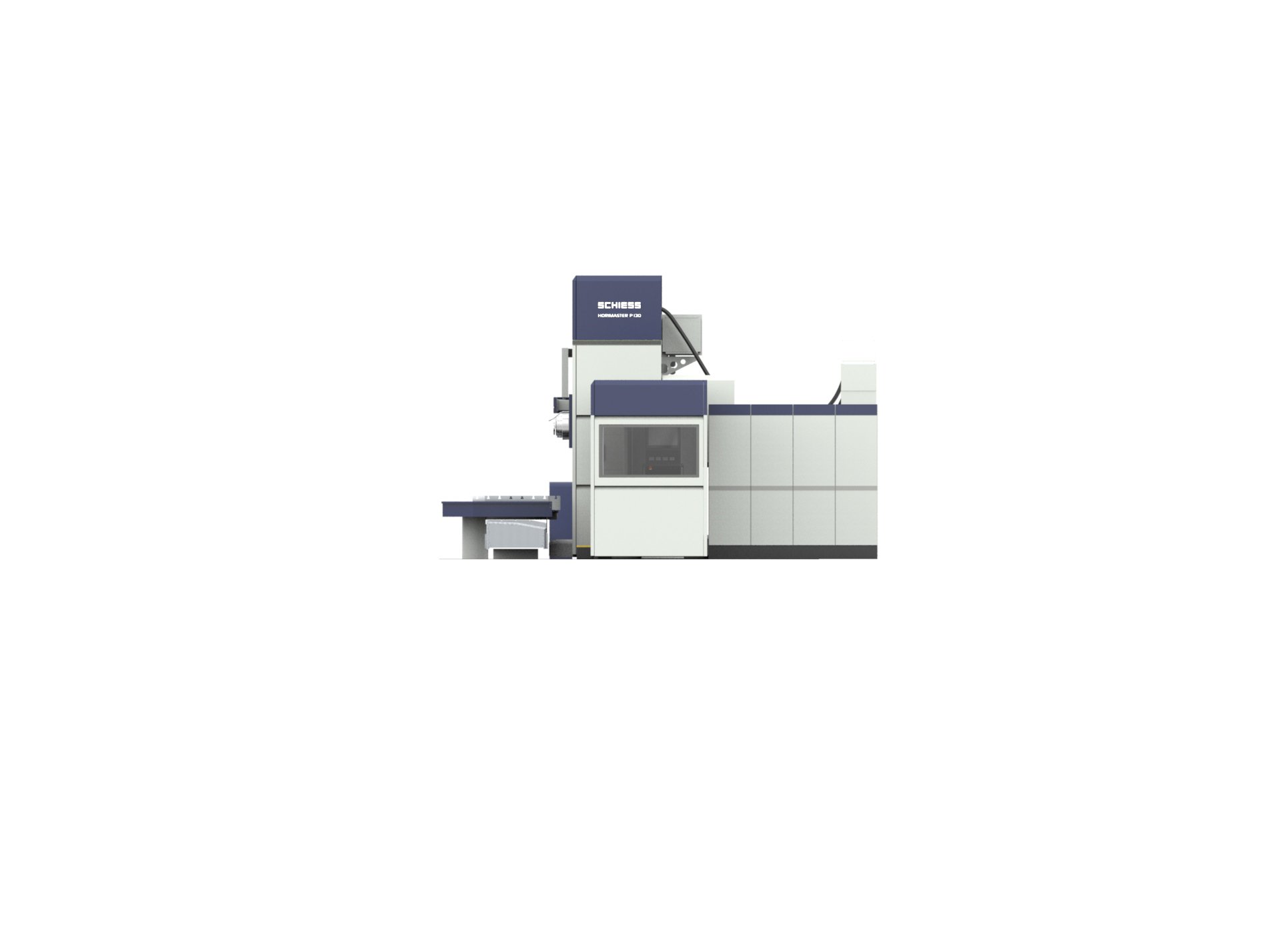

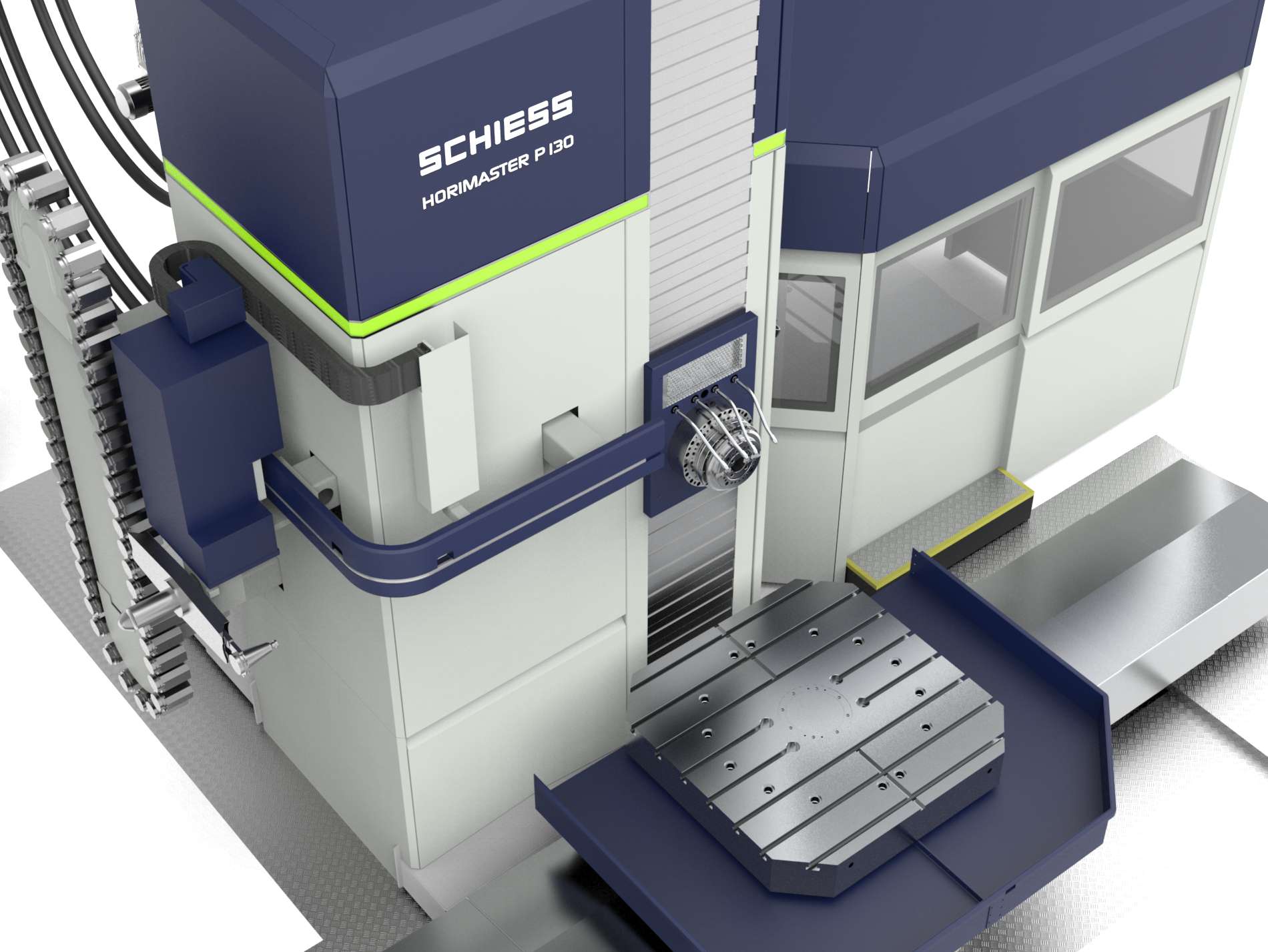

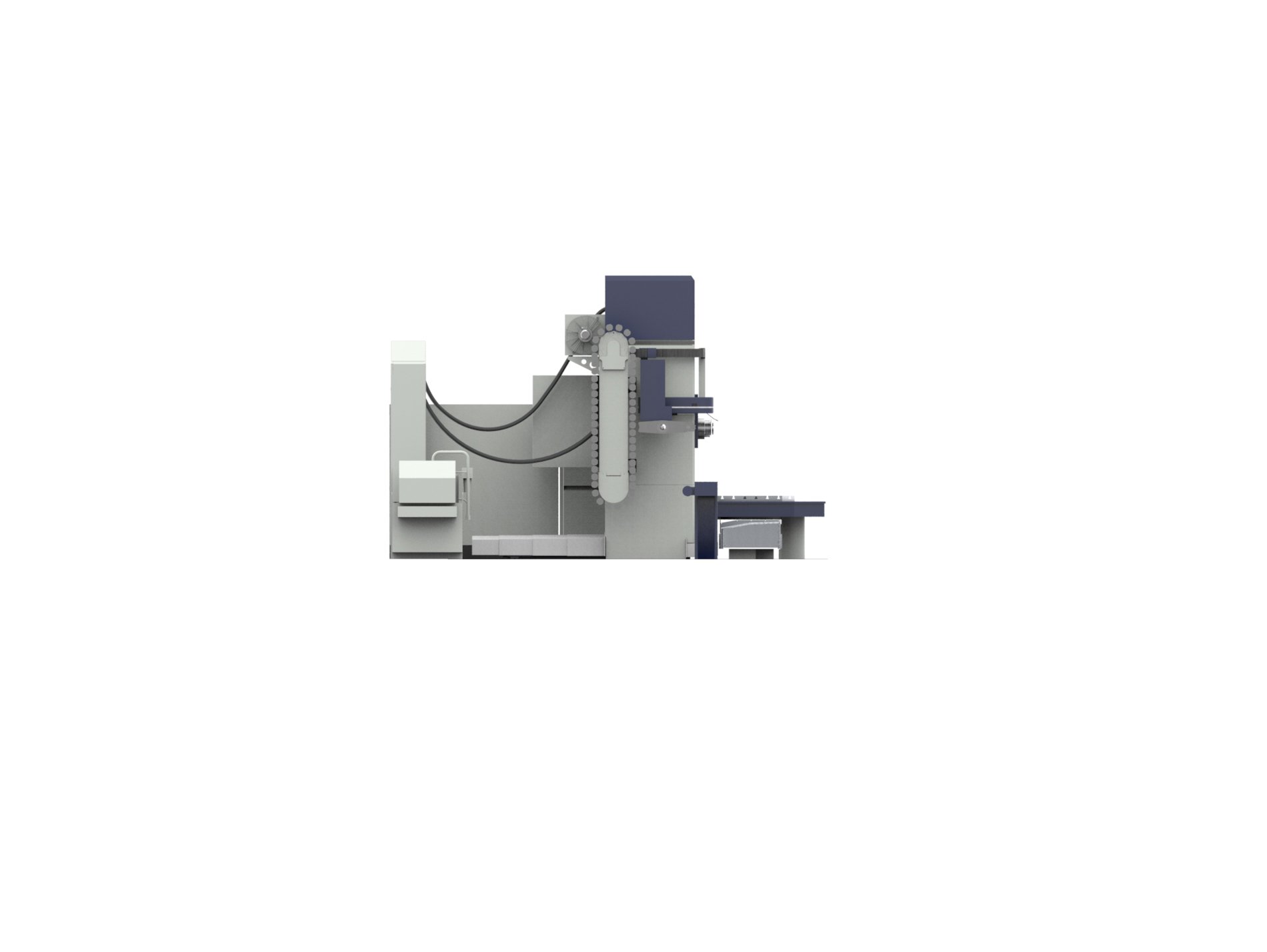

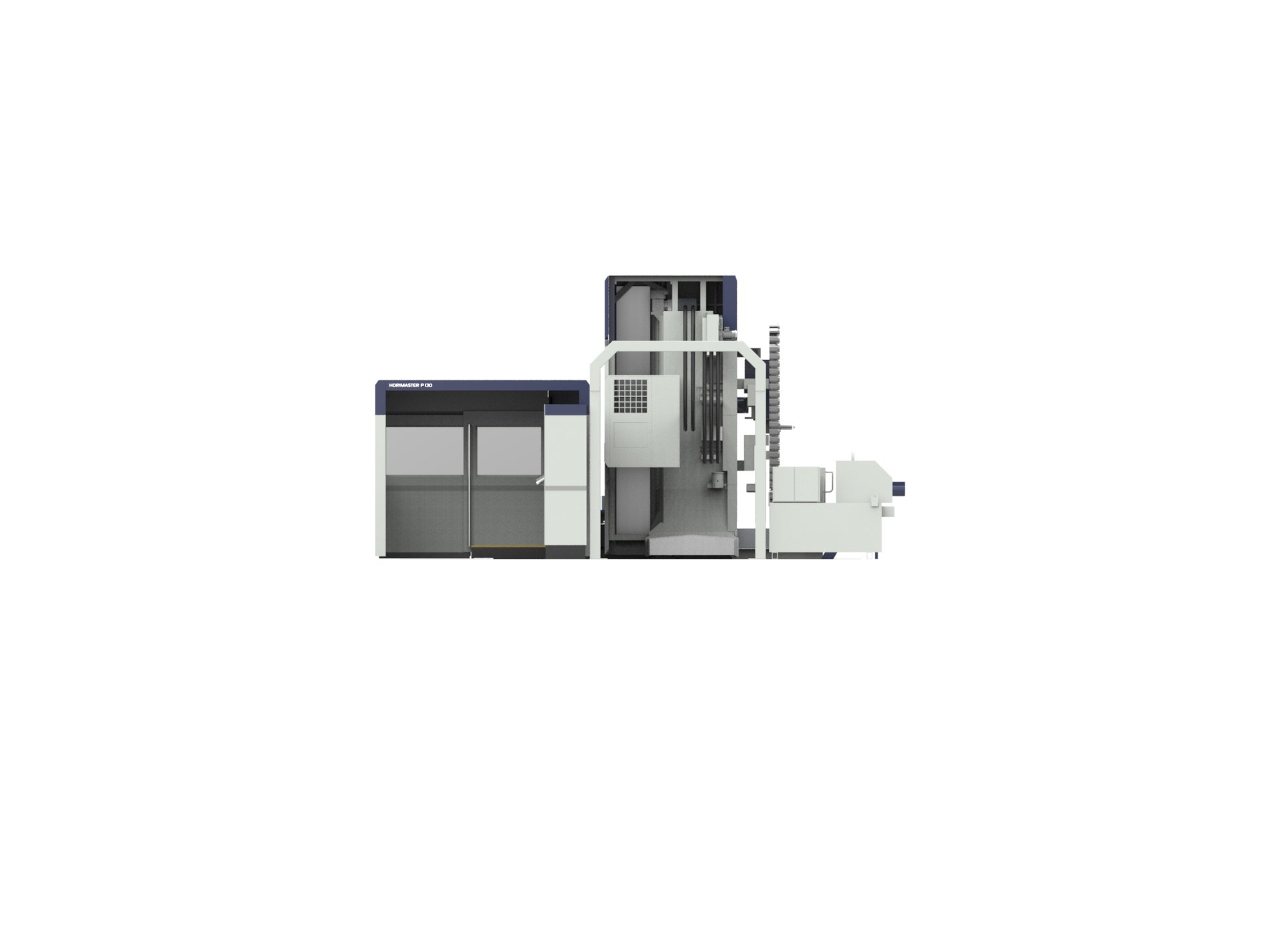

CNC boring machine

Offer details

Manufacturer
SCHIESS
Type
HORIMASTER P130
Year
2024
Delivery time
to be agreed upon
Freight basis
ex stock, to be agreed upon
Type of control
CNC
Control
SIEMENS SINUMERIK 840 D / HEIDENHAIN iTNC 640
Storage location
Halberstadt
Country of origin
Germany
financing
möglich

X-Travel
2500 mm
Y-Travel
2000 mm
Z-Travel
1200 mm
W-Axis
800 mm
B-Axis
360 °
Spindle Diameter
130 mm
Spindle Taper
SK 50
Rotary Table (Lxw)
1400 x 1600 mm
Table Load
12000 kg
Max. Workpiece Weight
650 kg
Max. Tool Diameter
250 mm
Numbers Of Tools In Magazin
40
Tool changer
Automatisch 40 Plätze
Spindle Turning Speed - Stepless
0 - 3.000 RPM
Max. Torque On The Boring Spindle
1600 Nm
Max. Torque
3.200 Nm
Turning Speed Range - Stepless
10.000 mm / min
