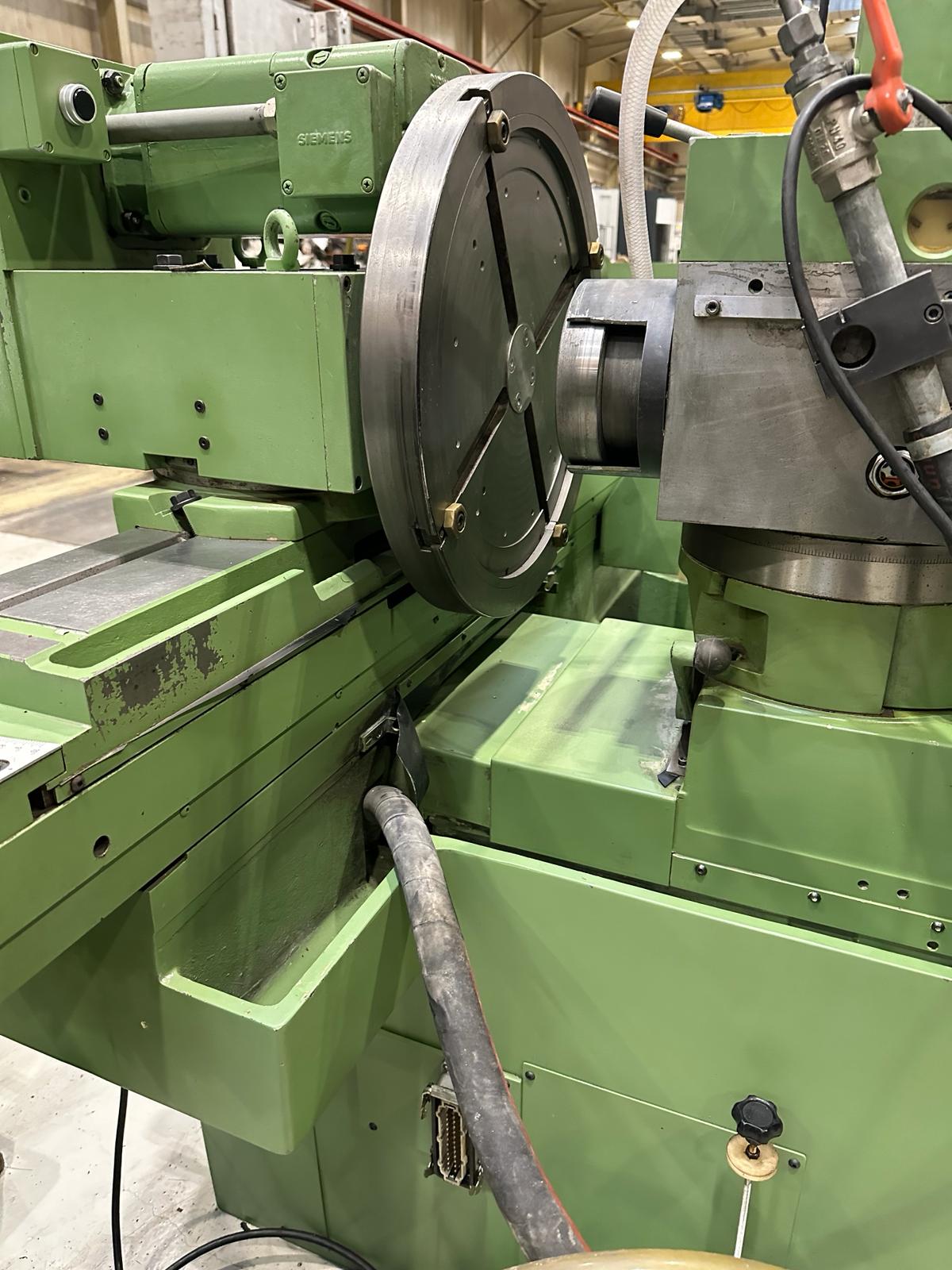

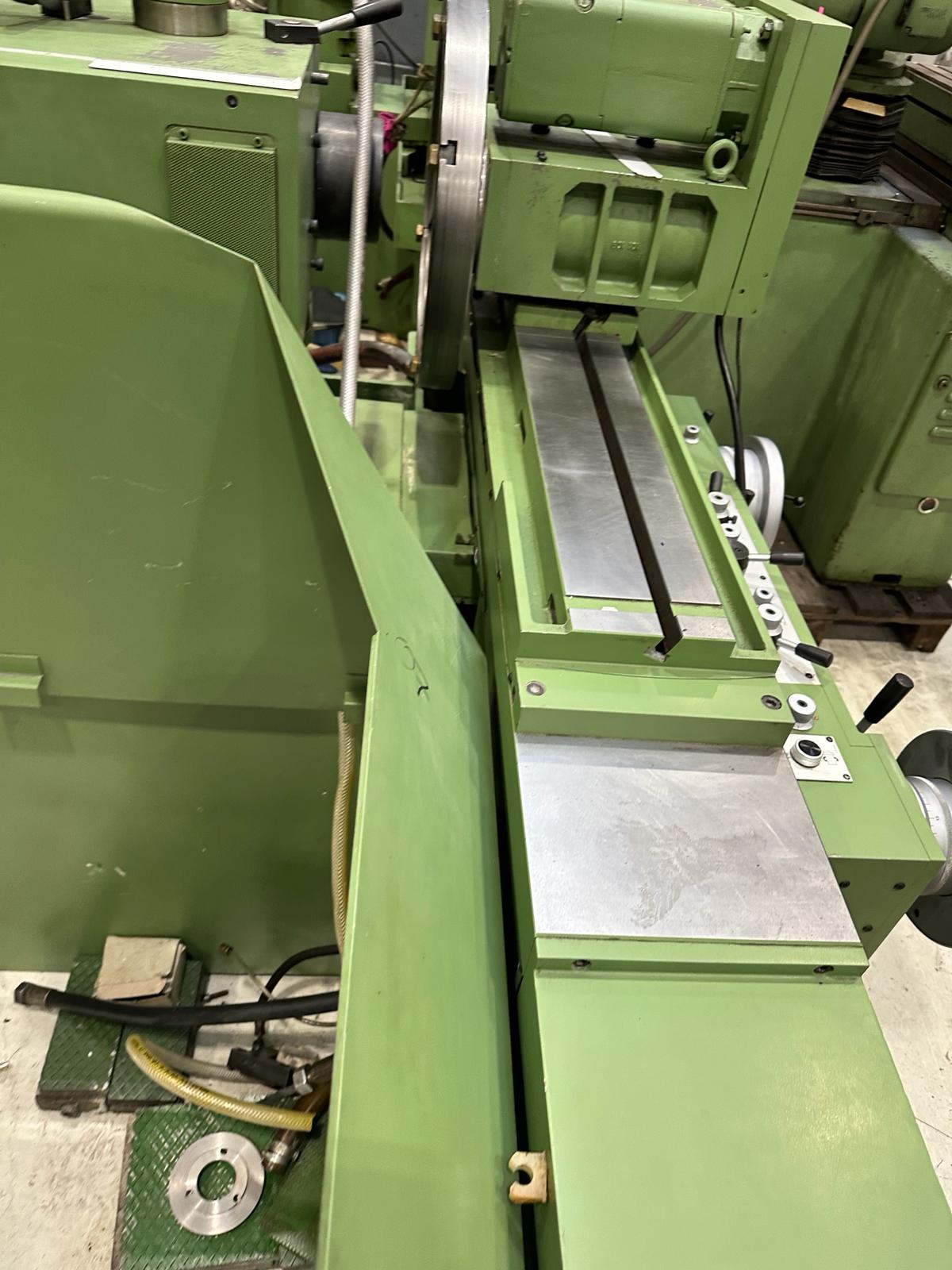

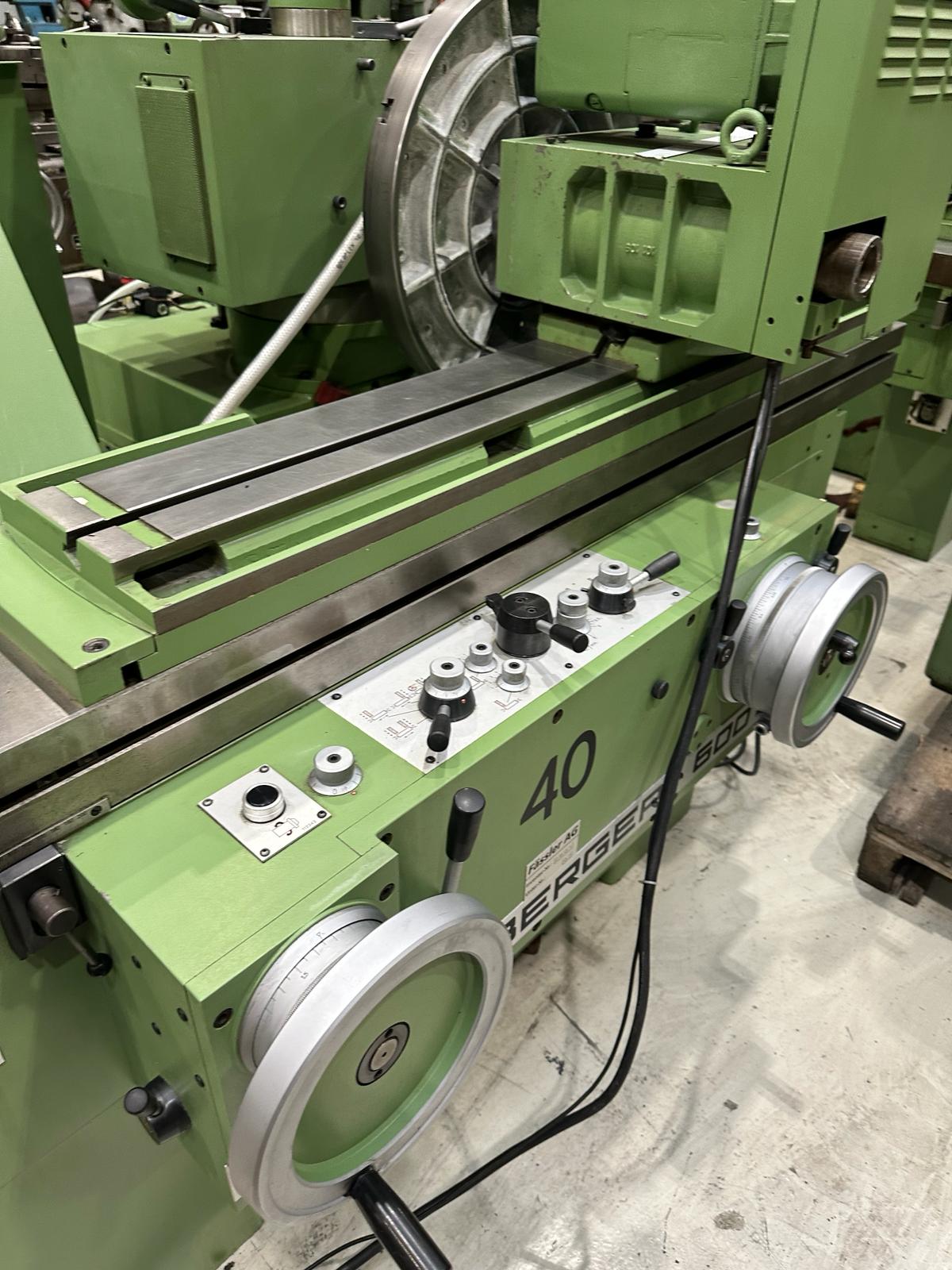

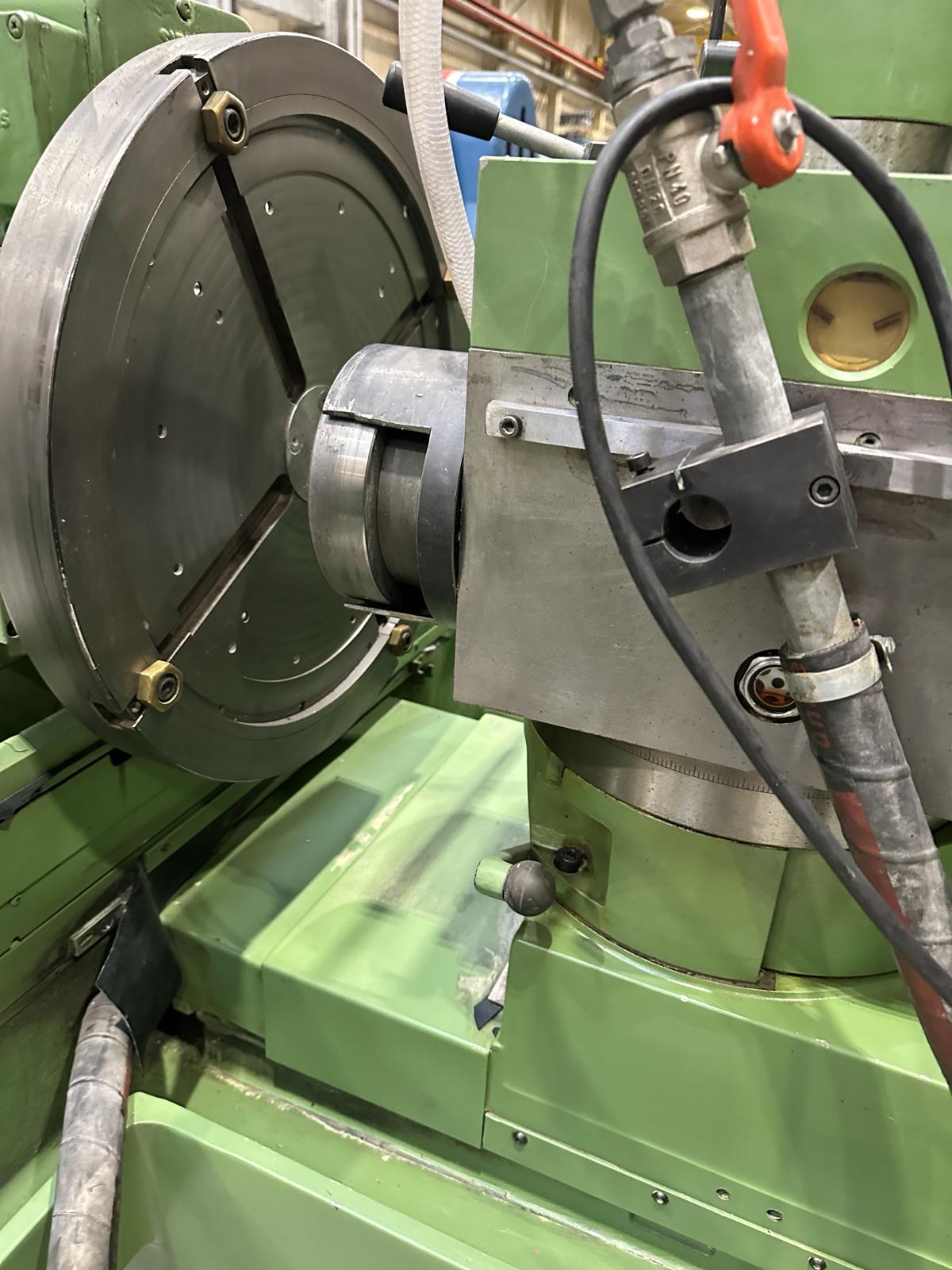

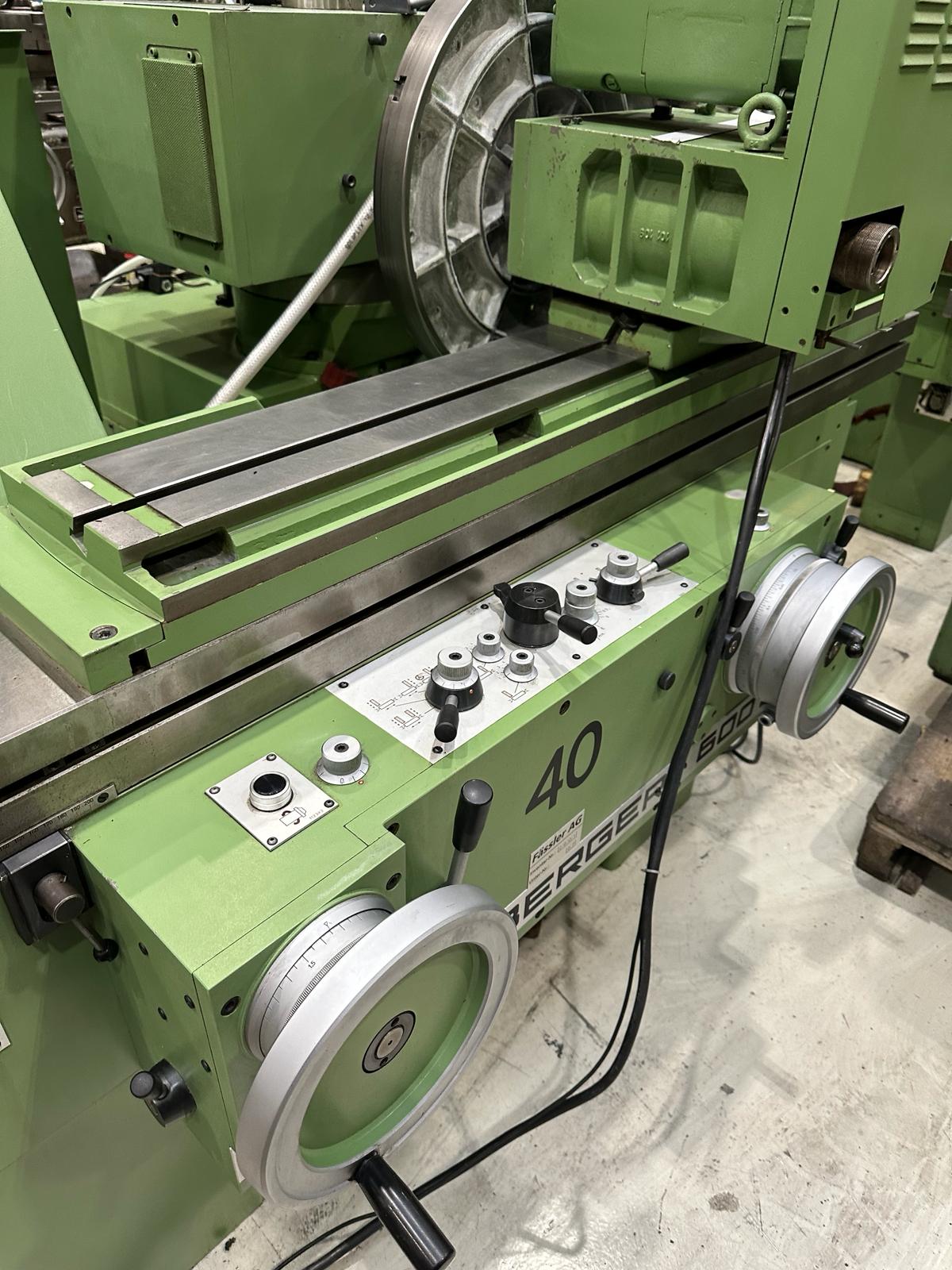

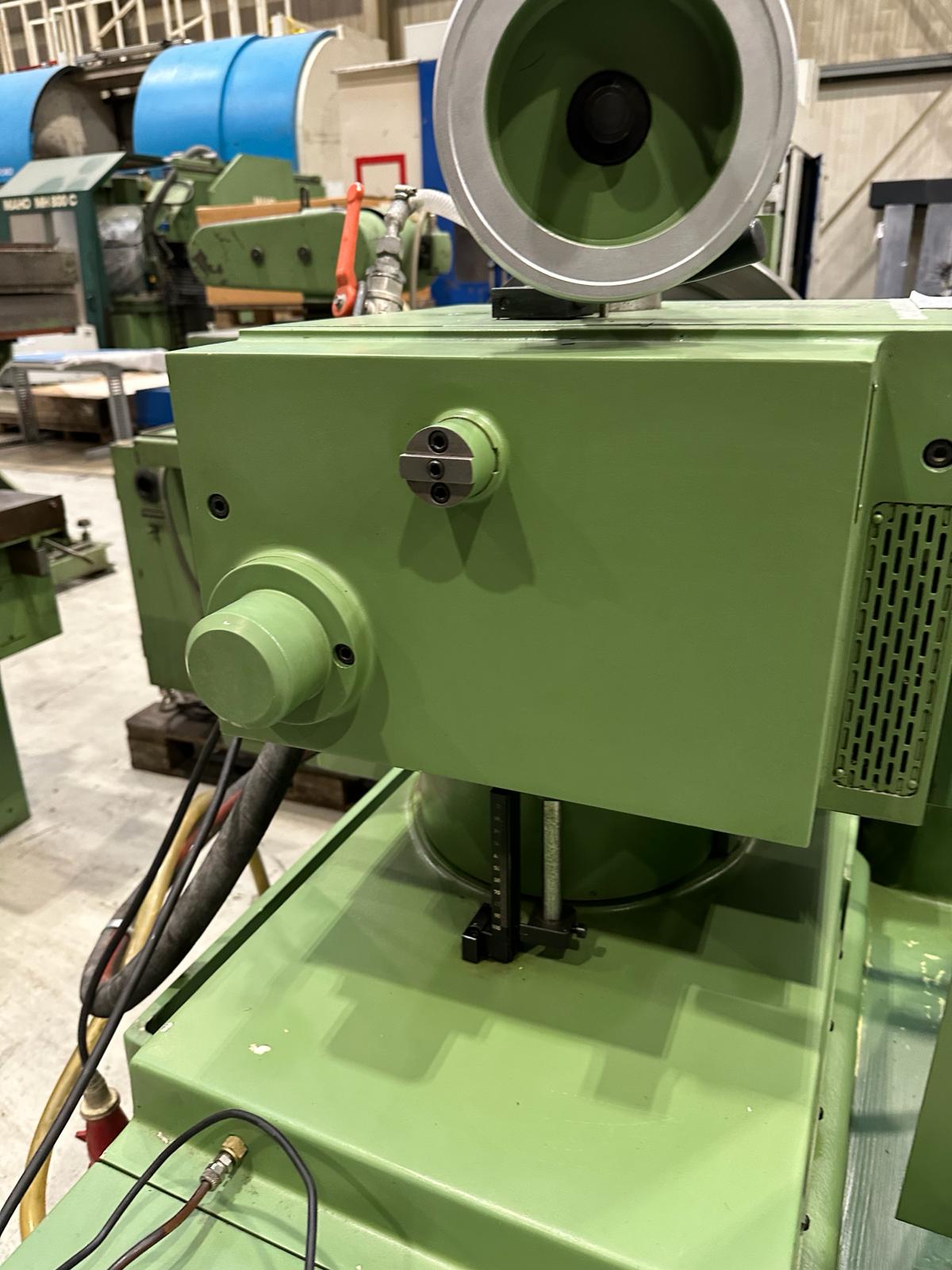

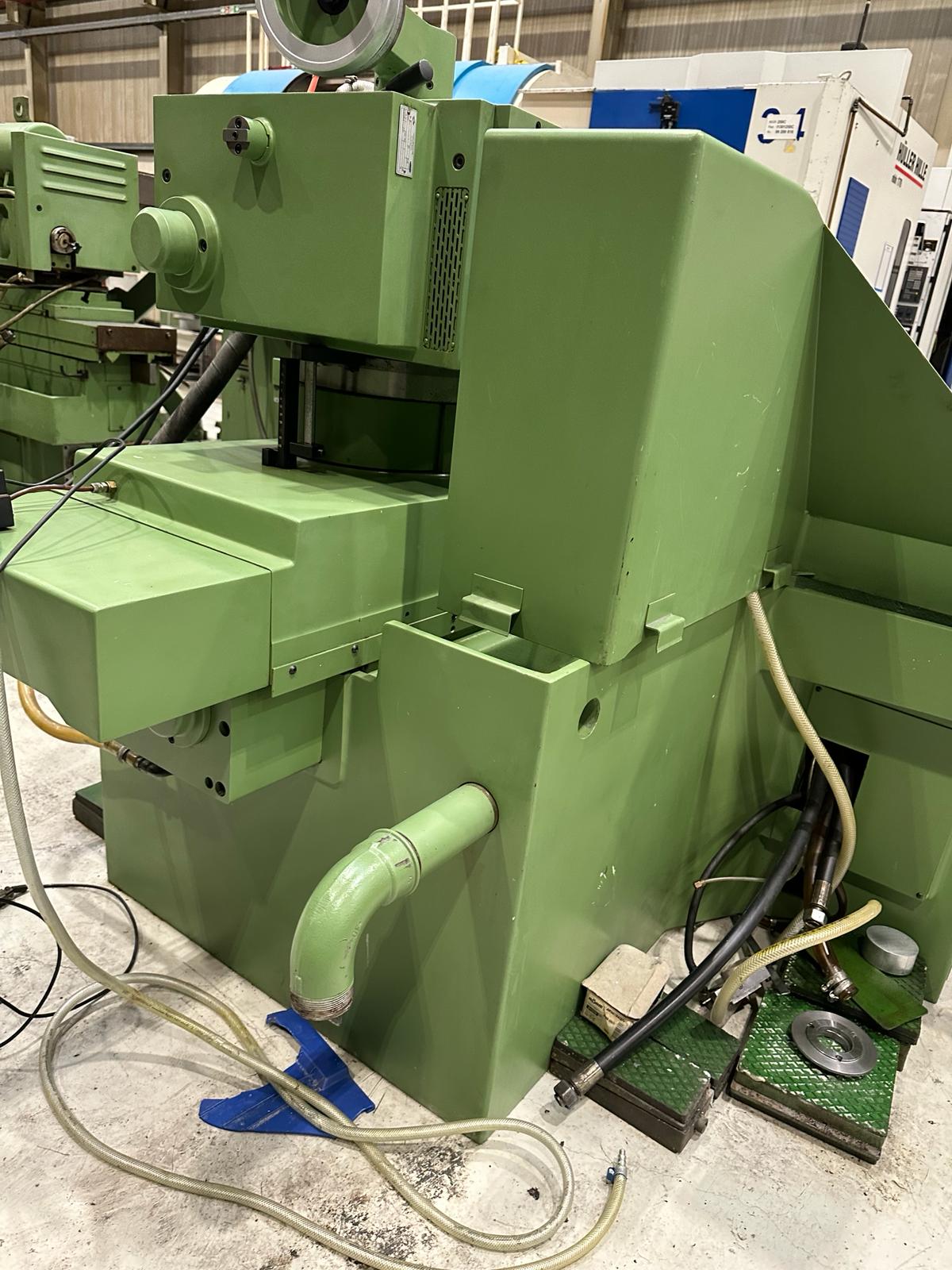

Cylindrical grinding machine
Offer details
Manufacturer
KELLENBERGER
Type
600 U - Nr. 40
Year
1988
Delivery time
immediately
Freight basis
ex stock
Type of control
Konventionell
Control
N/A
Storage location
Halberstadt
Country of origin
Switzerland
Distance between center
600 mm
Center height (standard)
125 mm
Height of centers by lifting work blocks head and tailstock
175 - 250 mm
Swing diameter with lifting blocks max.
350 - 500 mm
Table swivel / each side
10 °
Dwell time of the table reversal
0 - 5 Sec
Diameter / width / hole
250 x 13 x 76 mm
Speeds of the grinding wheel spindle
1500/1700/2200/3600
Swiveling grinding wheel head
360 °
Cross movement of the grinding wheel head
285 mm
Quickly pulling the wheel head back and forth
40 mm
Intermittent injection for each reversal of the table
0,001 - 0,03 mm / dia
Micro-corrector of the feed, 1 division of the dial
0,001 mm / Ø
Working speeds continuously adjustable (normal / special)
20-400/10-400
Max. Grinding length
900 mm
